CHEOY   LEE  OFFSHORE  35   (Sloop/Cutter)

 Designer:  Robert Perry

Built: Cheoy Lee,   Hong Kong  1979     rebuilt 1995-6
Contruction:  GRP with teak deck overlay.  Teak cockpit and interior.
Custom built GRP doghouse  (1996)

 LOA  34’ 10”        10.61 m
LWL  28’ 7”            8.71 m
Beam  11’ 2”           3.40 m
Draft     5’ 4”           1.62 m
Displ.  14,370 lbs     6,437 kg
Ballast  5, 275 lbs     2,374 kg

 Engine:   Kubota-Beta Marine 35hp   2022hrs   (1996)
Propeller :    Max-Prop  3-Blade  17” (1996)
Alternator: Balmar 100 amps (1996)

Mast:  Custom built by Forespar in USA,  aluminium anodized and painted.  (1995)

SS mast steps (1995)

 Rig:    SS with Norseman lowers throughout.  Removable cutter stay and runners.

All rig and chain plates  1995.   Profurl roller.
Sails:  Neil Pryde  Main,  150% Genoa,  115% Genoa.   Cruising chute.  Storm jib.
Main and working genoa 1996

 Diesel:  53 US gals  200 ltrs in two tanks
Water:  90 US gals  340 ltrs  in two tanks

Instruments:   Autohelm ST50 – Speed, Depth, Wind, Compass with multi repeater at Nav station.
Radar: Raytheon 20XX, 4KW, 24 miles
Waterfax:   Furuno FAX-207
GPS: Magnavox  MX-100
VHF: ICOM   IC-M58
Autopilots:     1)  Autohelm ST 4000 wheel drive
2)      Navico Powerpilot PH8000 hydraulic below deck. (Needs new circuit board)

Power generation:  100 amp alternator.   Two Siemens solar panels, ProCharger 4 JF- M75S,  75 Watts.    Aquair U.W. -  100 Watts  water generator with  transom  bracket.   Heart Interface Freedom 10 Inverter/ Charger.

Refrigeration: Isotherm 4000W – 12 V  water-cooled with holding plates.

Batteries: House 450 amps.     Engine 125 amps

Water heating:AC 110V   stainless steel unit.

 Windlass: Maxwell VDC 1100 Electric with remote control in cockpit.

Liferaft: Avon 4 man.  Transom mounted.
Dinghy: Avon inflatable
Outboard:Mariner 3.5 hp

Other:  Winches are by Lewmar and Barient.  Blocks by Harken.

Sophisticated burglar Alarm with sound and light.

Fitted TV, stereo and CD player.

(ALL ABOVE EQUIPMENT FROM 1995-6)

 This is a one owner yacht from new.   The owner is an experienced long-distance single hander.   He has had the boat rebuilt in 1995-6 with great care and thought using the best of equipment and engineering practice.   The refit included practically all working parts even down to the Whitlock wheel steering.   The thought behind everything extends to the provision of a cockpit fan for those hot tropical nights and arrangement for the bimini and awning to fill rainwater into the tanks.   There are few new boats as well put together as this one.

The built in hydraulic autopilot needs a new circuit board and the plugs over the screws in the teak deck need replacing.

This yacht should be seen by anyone wanting a fully equipped cruiser in fine order, ready to go.


Click on it
 to enlarge


Click on it
 to enlarge


Click on it
 to enlarge


Click on it
 to enlarge

Foredeck - Click to enlarge

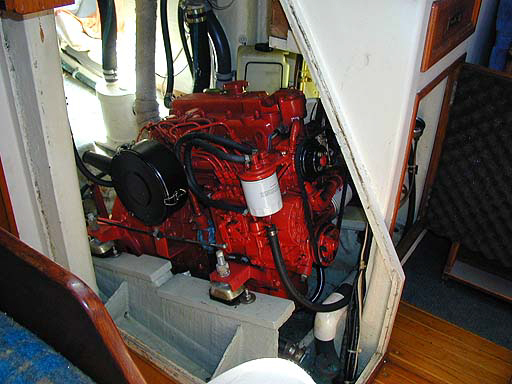

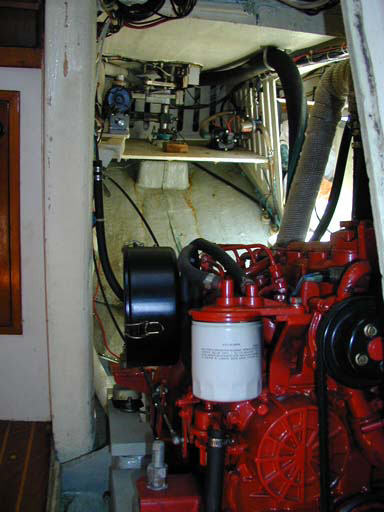

cheoy_lee_35_engine1.jpg (89610 bytes)  cheoy_lee_35_engine2.jpg (105414 bytes)   cheoy_lee_35_engine_access.jpg (105465 bytes)

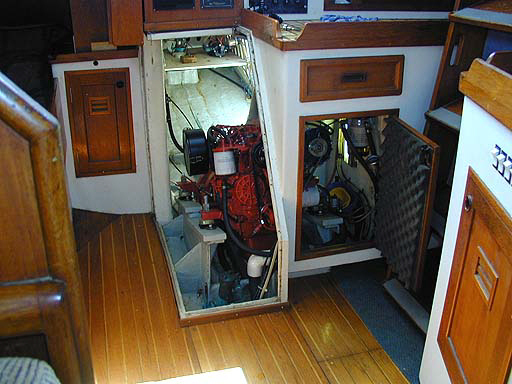

Engine Access is superb. Click to enlarge

Click to enlarge
