Posted 19-02-01



Classic 1937 40sq.m Knud Reimers 45' Cutter Headed Sloop

Length   45 ft
Breath  8 ft  9 in
Water line   29 ft
Draught 5 ft 7 in

By the same designer as the Tumlare, this classic was built, using an original hull and keel. The original was built for the New York boat show of 1937.

Classic 1937 40sq.m Knud Reimers 45' Cutter Headed Sloop

The current owner found the derelict hull in Larnaca Marina in Cyprus and copied it, Mr Knud  Reimers was contacted for any information on the design. He managed to trace 3 drawings of this series.

Click on the pictures below to enlarge

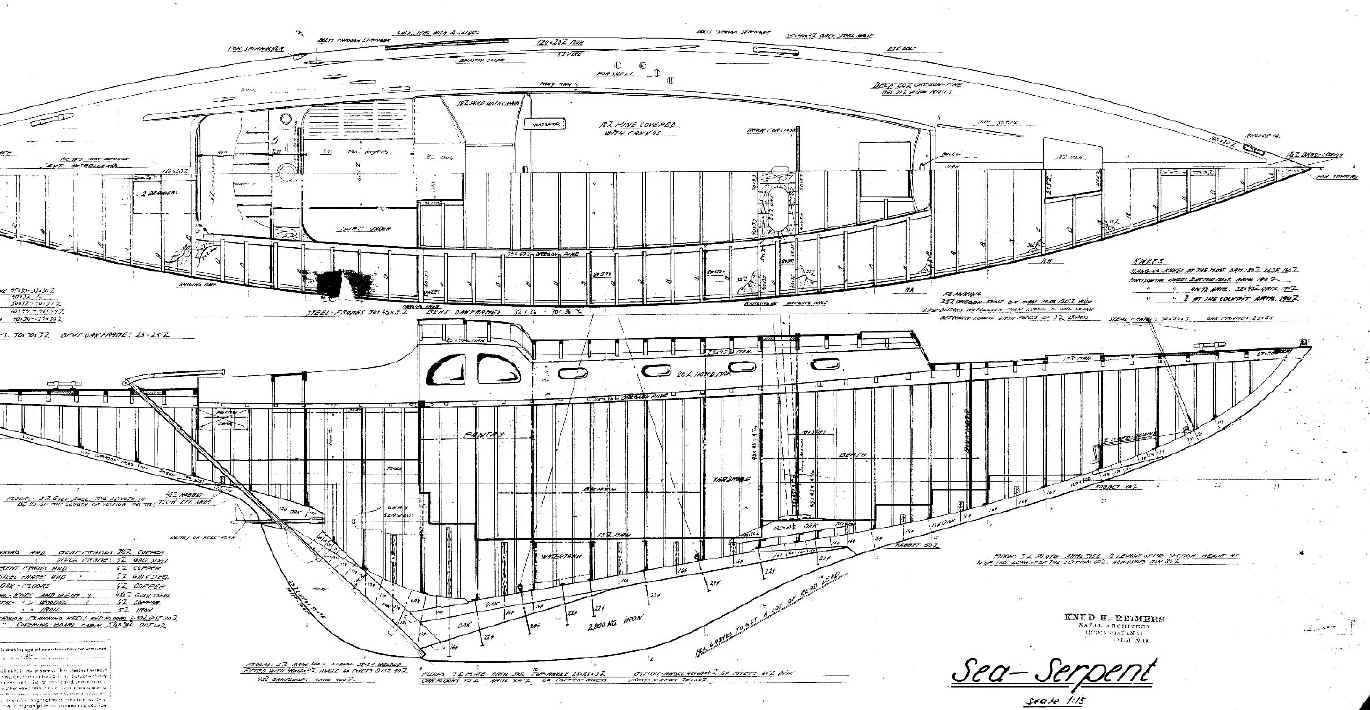

knud reimers 40 sq.m

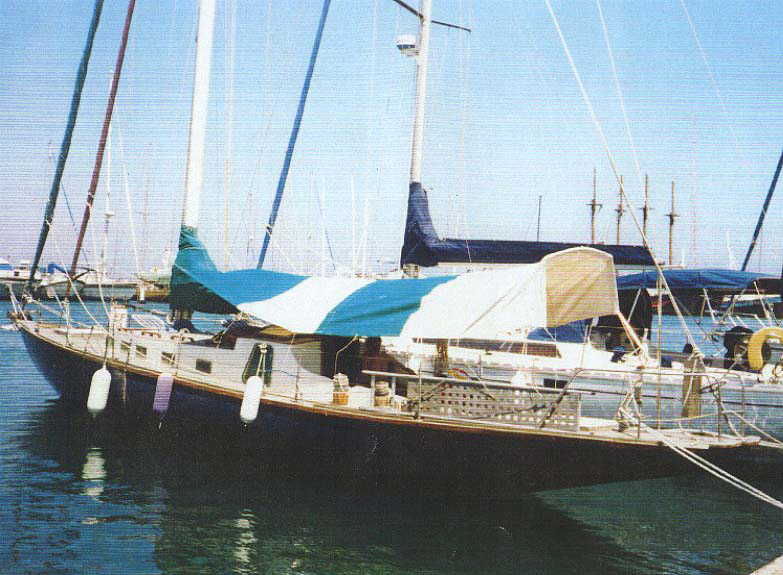

 Viking Stemeli

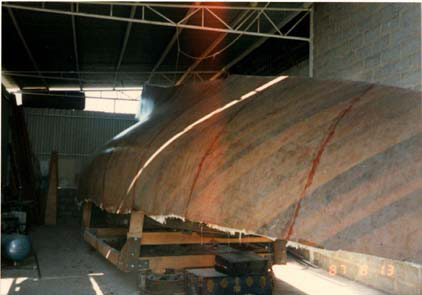

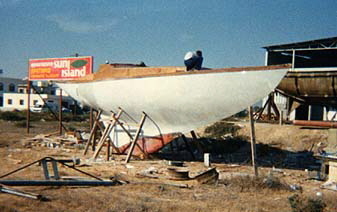

Outer skin - click to enlarge

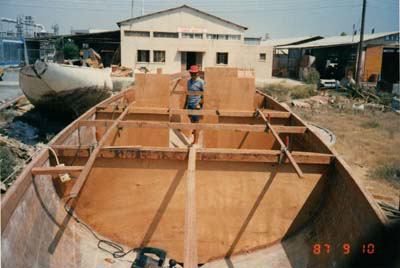

 Setting the bulkheads

 Working on her

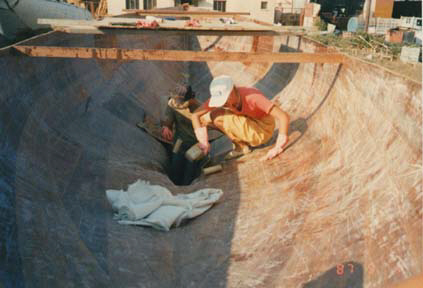

lining the hull

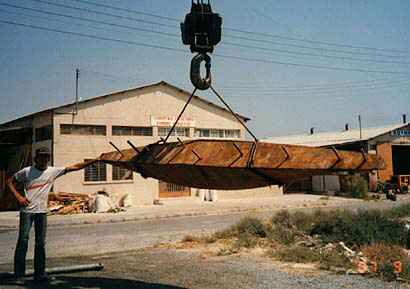

The Keel

The Hull

In the water

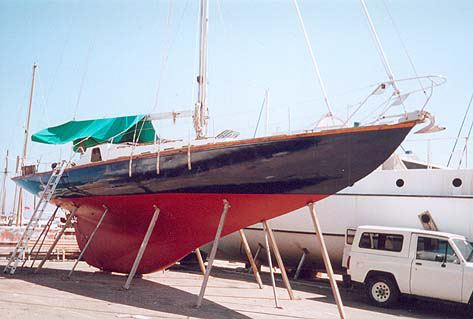

Knud Reimers 45' on the hard

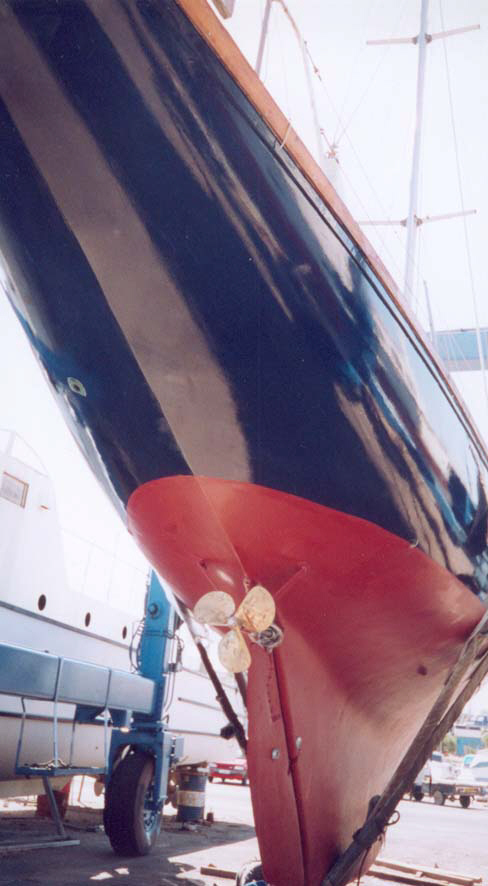

Knud Reimers 45' Prop

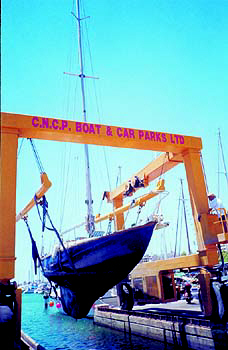

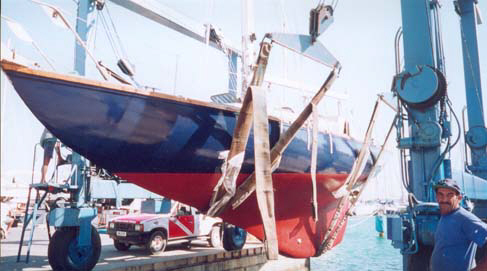

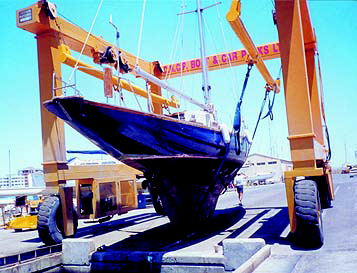

Knud Reimers 45' in the slings

Constructed in the Medcraft Boat yard Larnaca Cyprus.

The Hull was constructed using Wood Epoxy Saturation Technique

  • Hull construction - Cold molding 3 layers red meranti

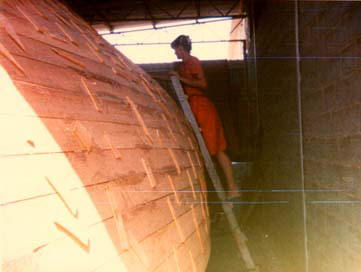

  • Inner layer horizontal 12 mm thick
  • Second layer diagonal 6 mm thick
  • Outer layer diagonal at 90 degrees to the second layer 6 mm
  • A skin of woven fiber cloth epoxy saturated protected both inner and outer surfaces.
  • Additional reinforcement was given to the hull below the water line around the keel support area by laying inside biaxial fiber epoxy saturated.
  • WESSEX Epoxy Resins, UK, resins and fillers were used throughout the construction

The deck is of sandwich construction of 6 mm plywood (below deck), 2 layers of 15mm balsa wood saturated in polyester resin and fiber blanked saturated in polyester resin top side

Coach house roof  is a lamination of 3 no layers of 8 mm thick each marine plywood.

Keel (the original) cast iron 3000 kg (keel is semi enclosed with epoxy saturated fiber cloth)

Bulkheads 24 mm marine plywood.

V- berth, Head, Main living area, galley and aft berth  open plan.
Keel  cast iron 3000 kg.

Engine Yanmar  3HJ" (1994)

Mast and rigging By Z-Spar U.K.   1997
Main sail by Gowens U.K.
Inner Jib   by Gowens U.K

Genoa. Both Genoa and inner Gib have reefing Gears By Sailspar U.K. Back Stay tensioner. Electric Windlass. Autopilot Navico 5000.

Instrumentation:
Log by Stowe
Echo sounder by NASA
Weather Fax by NASA
Wind Monitor by B & G
VHF
GPS, Garmin 75
Gas Cooker
Fridge 12V

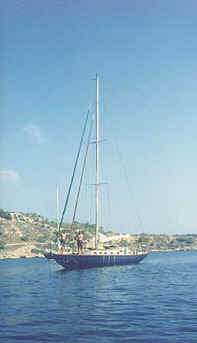

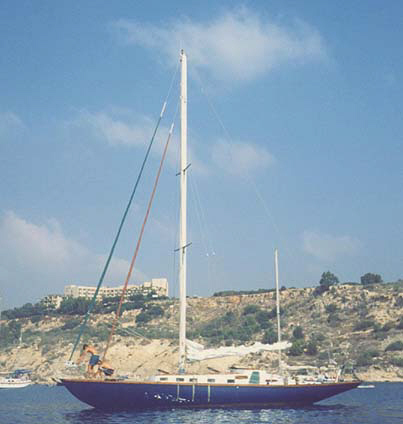

At anchor
Click to enlarge


She can be viewed in Cyprus, this is a remarkable opportunity to purchase a lovingly reproduced copy of a pre war 40 square metre.

Price C30,000
28,000
Sterling

To enquire further please E-mail us here.
